RA Flags in Used in Provisioning

[Godlisten Sumari]

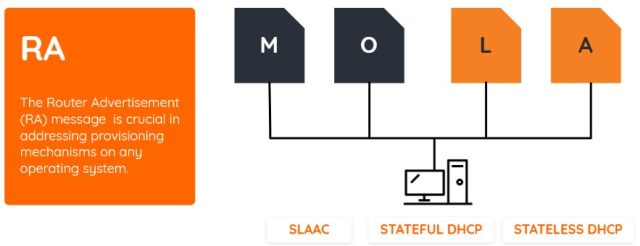

In IPv6 provisioning, Router Advertisements (RA) are sent by routers to inform devices about network settings. These RAs contain flags that determine how devices should configure their IPv6 addresses. The key RA flags used in provisioning are:

1. M Flag (Managed Address Configuration Flag):

• Purpose: Instructs devices to use Stateful DHCPv6 to obtain an IPv6 address.
• Action: If set to “1”, devices should request an address from a DHCPv6 server. If “0”, they rely on other mechanisms like SLAAC.

2. O Flag (Other Configuration Flag):

• Purpose: Instructs devices to use Stateless DHCPv6 for additional configuration information (like DNS servers), but not for IP addresses.
• Action: If set to “1”, devices use DHCPv6 to get additional configuration details, but still use SLAAC for their IP address.

3. A Flag (Autonomous Address Configuration Flag):

• Purpose: Indicates whether devices can use SLAAC to configure their IPv6 addresses automatically.
• Action: If set to “1”, devices generate their own address using the prefix in the RA and their interface ID.

4. L Flag (On-link Flag):

• Purpose: Indicates that the prefix in the RA can be used for on-link communication without needing a router.
• Action: If set to “1”, devices treat the prefix as valid for direct communication within the local link.

[Samuel Mwamsaku]

• SLAAC (Stateless Address Autoconfiguration): The host configures its own IPv6 address using the prefix in the RA (A-flag set) and uses the RA for the default gateway.
• Stateful DHCPv6: The host gets both its IPv6 address and other configuration settings (e.g., DNS) from a DHCPv6 server (M-flag set).
• Stateless DHCPv6: The host uses SLAAC to configure its address but uses DHCPv6 to get other configuration information, such as DNS (O-flag set).

• L-Flag (On-link Flag):

• If set to 1, the prefix provided in the RA is on-link, meaning it can be used for communication within the local network without needing to go through a router.
• If set to 0, the prefix is not considered on-link, and traffic to that prefix must be routed.

[Eduardo Brito da Cunha]

Well Done.

[samson Mawisire]

well done with the explanation
